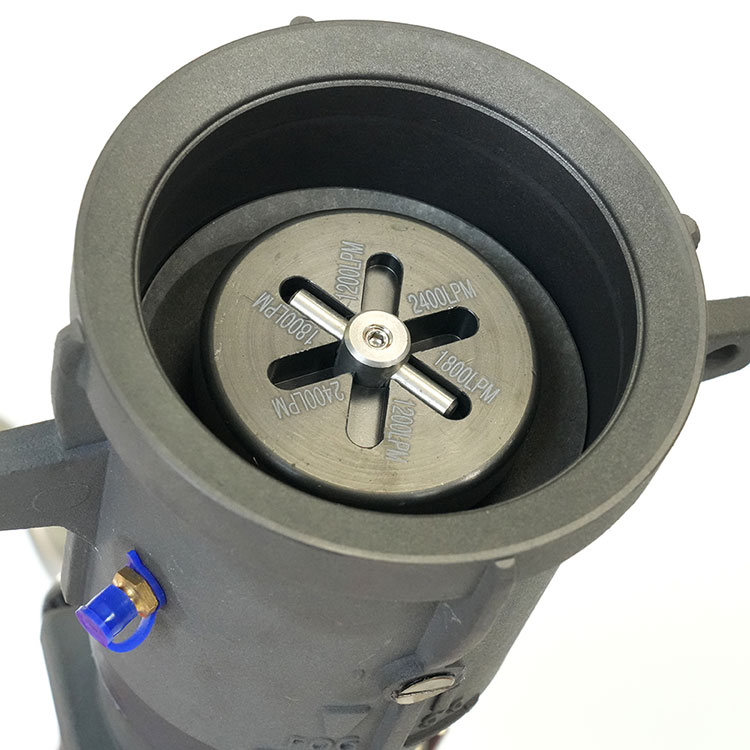

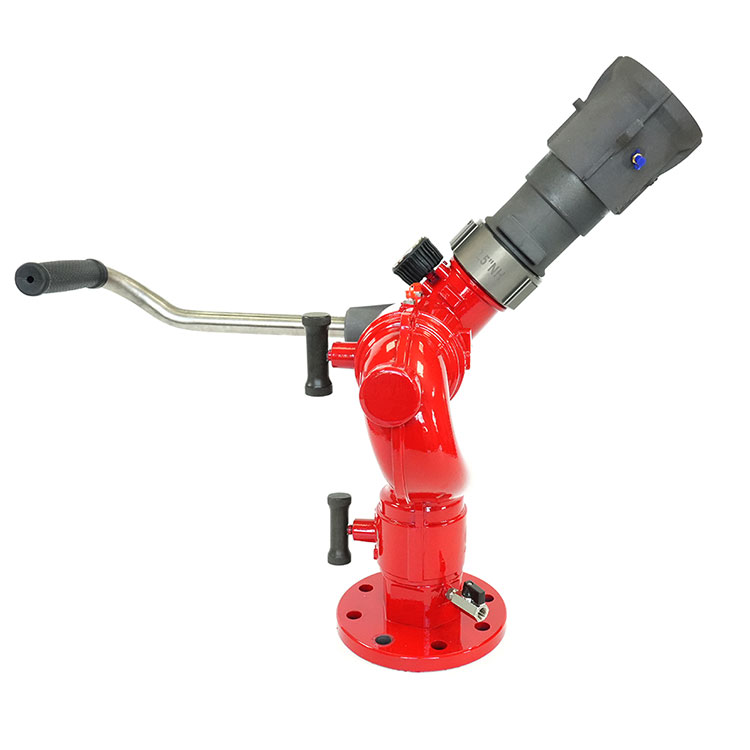

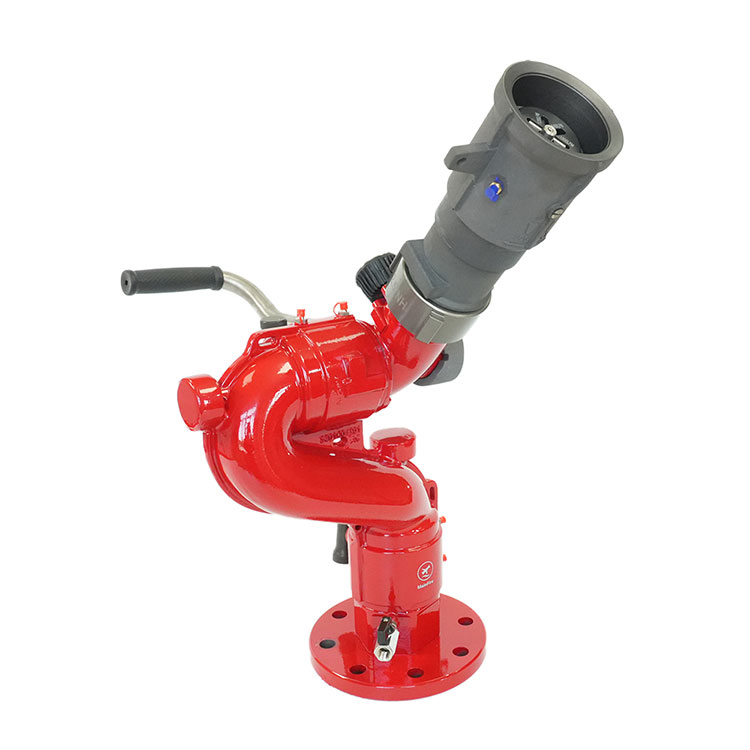

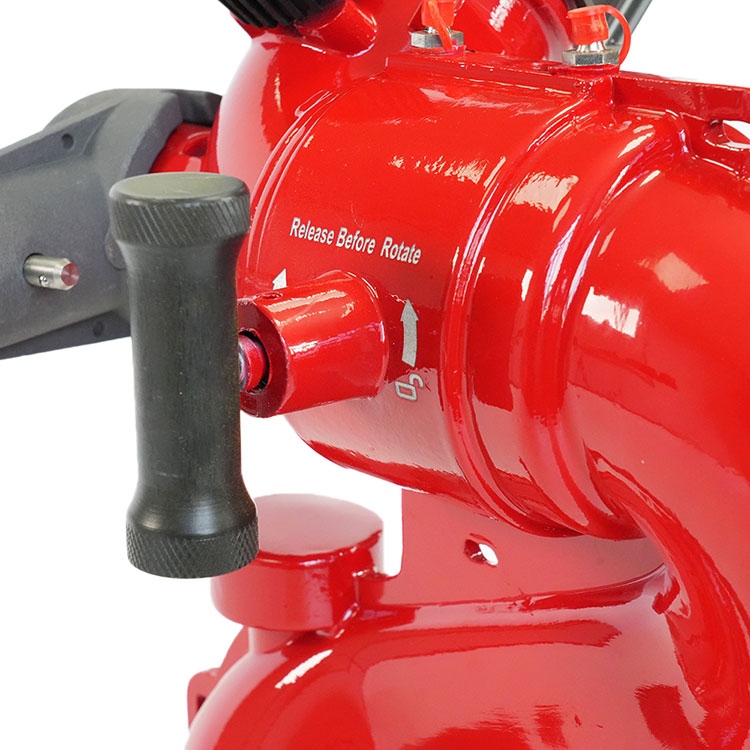

China Plent Manual Operated Fire Monitor is very easy to operate. There’re two travel limits on the fire monitor body. Before operation, release these two limits firstly. And then lever the operation tiller bar up or down, right or left, you can adjust the angle both horizontally and vertically. You can also adjust the nozzle to switch straight stream spray pattern to fog spay pattern. This is simple fire monitor with competitive costs.
Plent high quality Manual Operated Fire Monitor is very easy to operate. There’re two travel limits on the fire monitor body. Before operation, release these two limits firstly. And then lever the operation tiller bar up or down, right or left, you can adjust the angle both horizontally and vertically. You can also adjust the nozzle to switch straight stream spray pattern to fog spay pattern. This is simple fire monitor with competitive costs.
Plent Manual Operated Fire Monitor- C series tiller bar is made of stainless steel. This is with durable and anti-corrosion in the long-term operation. For More Info., please kindly refer to below tech data sheet.
|
Product |
C Series Manual Operated Fire Monitor |
||
|
Model# |
PS8/20W-C |
PS8/30W-C |
PS8/40W-C |
|
Working Pressure |
8Bar / 116PSI |
8Bar / 116PSI |
8Bar / 116PSI |
|
Flow Rate |
1200lpm (317GPM) |
1800lpm (475GPM) |
2400lpm (635GPM) |
|
Max Reach |
≥53m |
≥60m |
≥65m |
|
Flow Tolerance |
+10% |
||
|
Travel Range |
0°~360° (Horizontally)/ -45°~+75°(vertically, customized service available) |
||
|
Waterway Size |
2.5”(63.5mm) |
||
|
Jetting Pattern |
Jet or Fog Spray |
||
|
Max Fog Angle |
120° |
||
|
Product Material |
Aluminum Alloy (Monitor Body and Nozzle), Stainless Steel (Tiller Bar) |
||
|
Monitor Inlet |
2.5”Flange or Bigger size( available for customized design) |
||
|
Monitor Outlet |
2.5”(63.5 mm) |
||
|
Weight (N.W.) |
11 kg (24.2 lbs) |
||
|
Country of Origin |
Made in China |
||
|
Trademark |
Shengxin Firepro Tech or Customized |
||
1. Durable and Light Alloy Construction
2. Efficient cast-in turning vane design
3. Compact and easy to operate
4. Experienced R&D Team for design and aftersales service
5. Ideal for marine, offshore, industrial and other corrosive environment
6. 1-Year Warranty
● Oil & Gas
● Fuel Storage Area
● Fire & Rescue
● Mining
● Sea Conditions
● Chemical Industry
For More info about Ningbo Plent Manual Operated Fire Monitor products, feel free to contact us any time.
