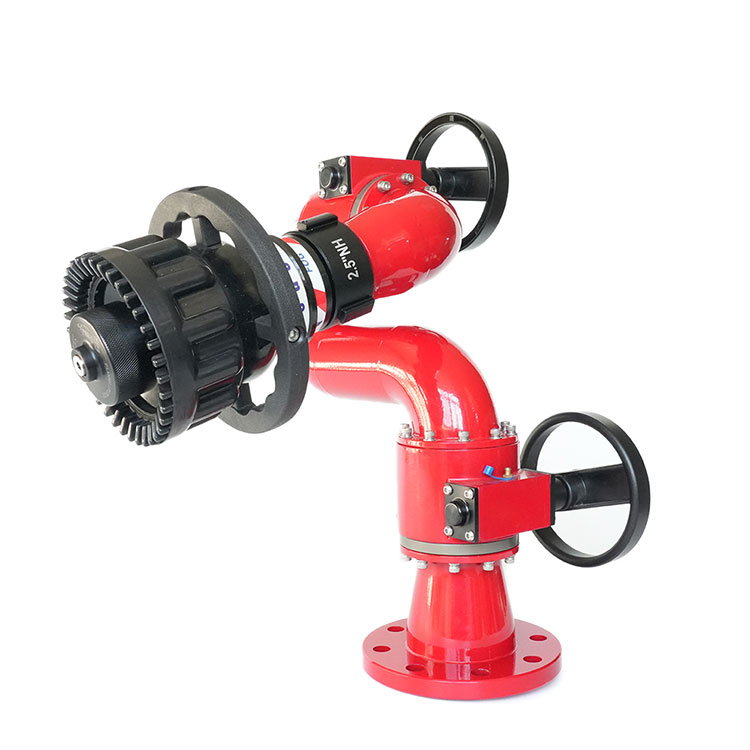

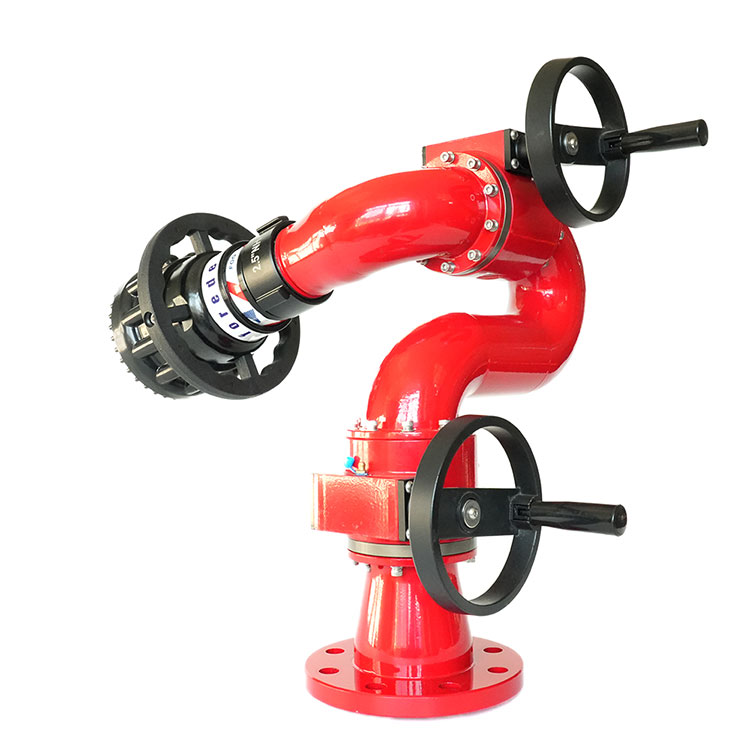

Plent Manual Handwheel Fire Monitor’s operation mode is quite similar to lever operated fire monitor. There’re two handwheels assembled on monitor body. Personnel and users can realize monitor’s up-down and left-right travel through different handwheels. This is also a quite simple way for personnel /other users’ operation. All Plent Manual handwheel Monitors are applied turbine structure handwheel So there’s no need to add extra travel limits. If there’s any tech supports you need, feel free to contact our sales any time.
Plent Manualhandwheel Monitor’s operation mode is quite similar to lever operated fire monitor. There’re two handwheels assembled on monitor body. Personnel and users can realize monitor’s up-down and left-right travel through different handwheels. This is also a quite simple way for personnel /other users’ operation. All Plent Manual handwheel Monitors are applied turbine structure handwheel So there’s no need to add extra travel limits. If there’s any tech supports you need, feel free to contact our sales any time.
Plent Manual Handwheel Fire Monitor- SA series’ are capable to offer water flow up to 100L/S. For More Info., please kindly refer to below tech data sheet.
|

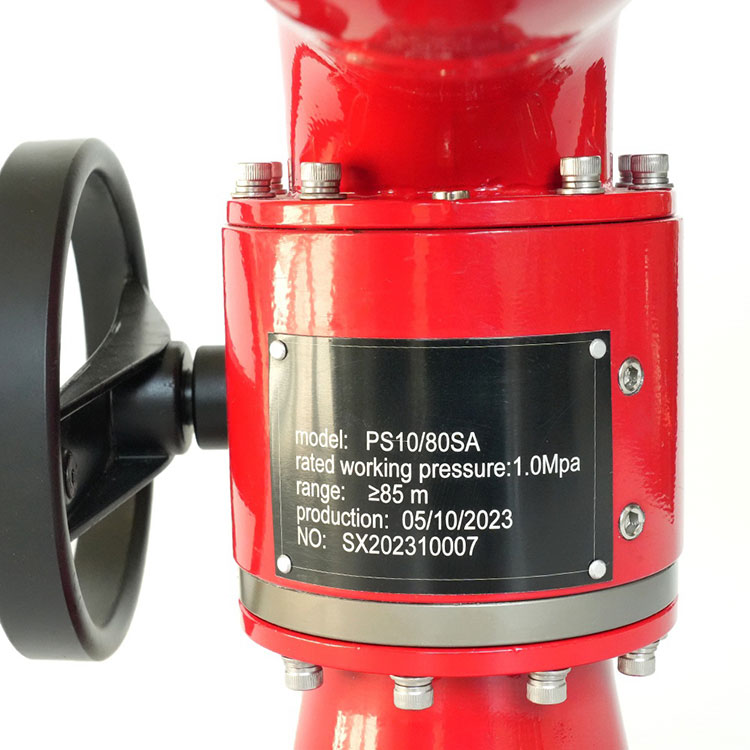

Model# |
PS8/80W-SA |
PS10/100W-SA |
|
Working Pressure |
8Bar/ 116PSI |
10Bar/ 145PSI |
|
Flow Rate |
4800lpm (1270GPM) |
6000lpm (1585GPM) |
|
Max Reach |
≥85m |
≥90m |
|
Travel Range |
0°~360° (Horizontally)/-15°~+90°(Vertically) |
|
|
Waterway Size |
4”(101.6mm) |
|
|
Jetting Pattern |

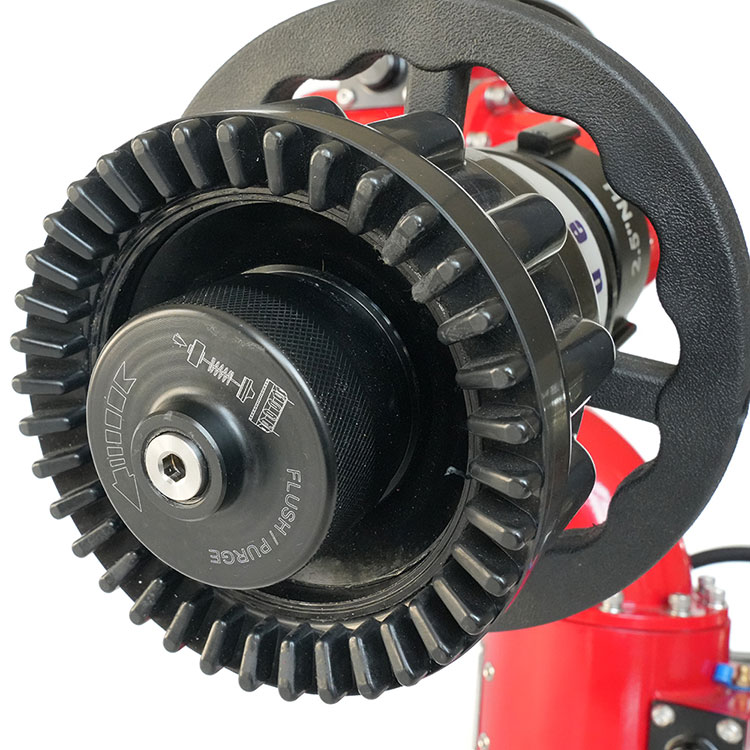

Jet or Fog Spray |
|
|
Max Fog Angle |
120° |
|
|
Product Material |
Aluminum Alloy (Monitor Body and Nozzle),Dual Handwheel(Bakelite) |
|
|
Monitor Inlet |
4”Flange or Bigger size (available for customized design) |
|
|
Monitor Outlet |
4”(101.6 mm) |
|
|
Weight (N.W.) |
22 kg (48.4 lbs) |
|
|
Country of Origin |
Made in China |
|
|
Trademark |
Shengxin Firepro Tech or Customized |
|
1. Durable and Light Alloy Construction
2. Efficient cast-in turning vane design
3. Compact and easy to operate
4. Experienced R&D Team for design and aftersales service
5. Ideal for marine, offshore, industrial and other corrosive environment
6. 1-Year Warranty
● Oil & Gas
● Fuel Storage Area
● Fire & Rescue
● Mining
● Sea Conditions
● Chemical Industry
For More info about Ningbo Plent Manual Handwheel Fire Monitor products, feel free to contact us any time.
