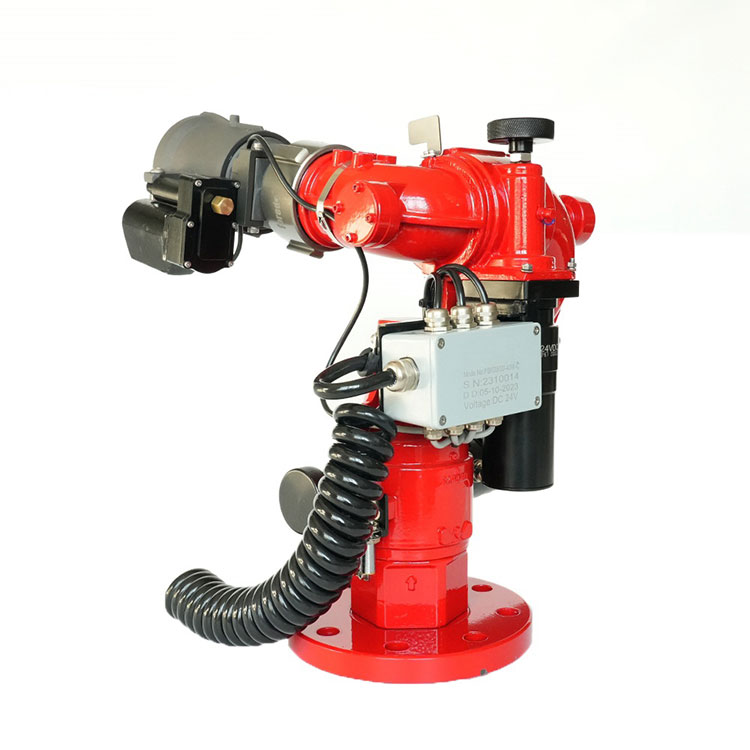

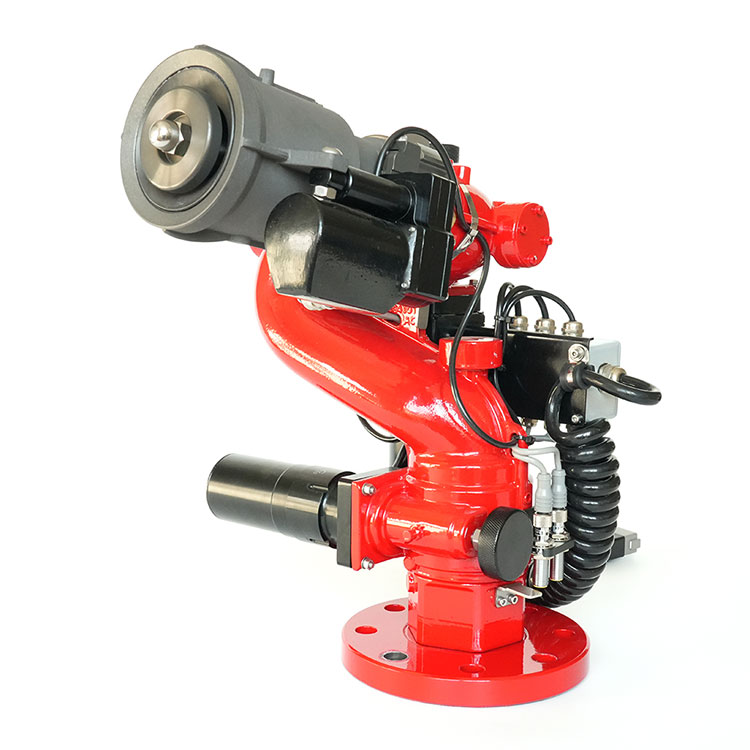

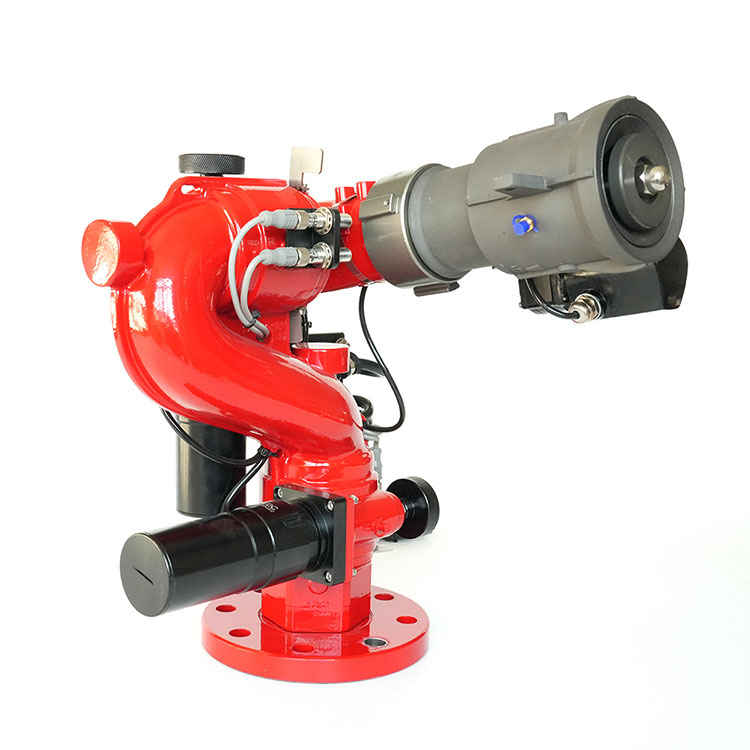

Plent Electric Fire Water Monitor is capable to provide multiple control modes, including vehicle cabinet joystick and remote control, etc. Fully sealed motor and enclosure design allows Plent Electric Fire Water Monitor working perfectly in severe environment. With steady performance and competitive costs, Plent Electric Fire Water Monitor gets highly approval from domestic and oversea customers.
Plent Electric Fire Water Monitor is capable to provide multiple control modes, including vehicle cabinet joystick and remote control, etc. Fully sealed motor and enclosure design allows Plent Electric Fire Water Monitor working perfectly in severe environment. With steady performance and competitive costs, Plent Electric Fire Water Monitor gets highly approval from domestic and oversea customers.
Plent Firefighting Electric Fire Monitor – C Series’ max reach is up to 65meters. For more info., please kindly refer to below tech data sheet.
|
Product |
Plent Electric Fire Water Monitor-C Series |
||
|
Model# |
PSKD8/20W-C |
PSKD8/30W-C |
PSKD8/40W-C |
|
Working Pressure |
8Bar / 116PSI |
8Bar / 116PSI |
8Bar / 116PSI |
|
Flow Rate |
1200lpm (320GPM) |
1800lpm (475GPM) |
2400lpm (635GPM) |
|
Max Reach |
≥53m |
≥60m |
≥65m |
|
Flow Tolerance |
+10% |
||
|
Travel Range |
0°~360° (Horizontally)/-45°~+90°(vertically) |
||
|
Turning Speed |
12°/sec. (Horizontally) / 12°/sec.(Vertically) |
||
|
Jetting Pattern |
Jet or Fog Spray |
||
|
Max Fog Angle |
120° |
||
|
Working Voltage |
AC220V or DC 12V/24V (customized available) |
||
|
Monitor Inlet |
2.5”Flange or Bigger Size ( available for customized design) |
||
|
Monitor Outlet |
2.5”(63.5mm) |
||
|
Weight （N.W.） |
18.5kg (50.8 lbs) |
||
|
Waterway Size |
2.5”(63.5mm) |
||
|
Product Material |
Aluminum Alloy (Nozzle and Monitor Body) |
||
|
Trademark |
Shengxin Firepro Tech or Customized |
||
1. Durable and Light Product Construction
2. High Waterproof Protection for Electric Parts
3. Imported Key Parts (Motor and Sensor)
4. Flexible Oscillation and Travel Limit Setting
5. Extra Manual Operation Function for emergency case
6. Professional Engineer Team for Aftersales and Tech Supports

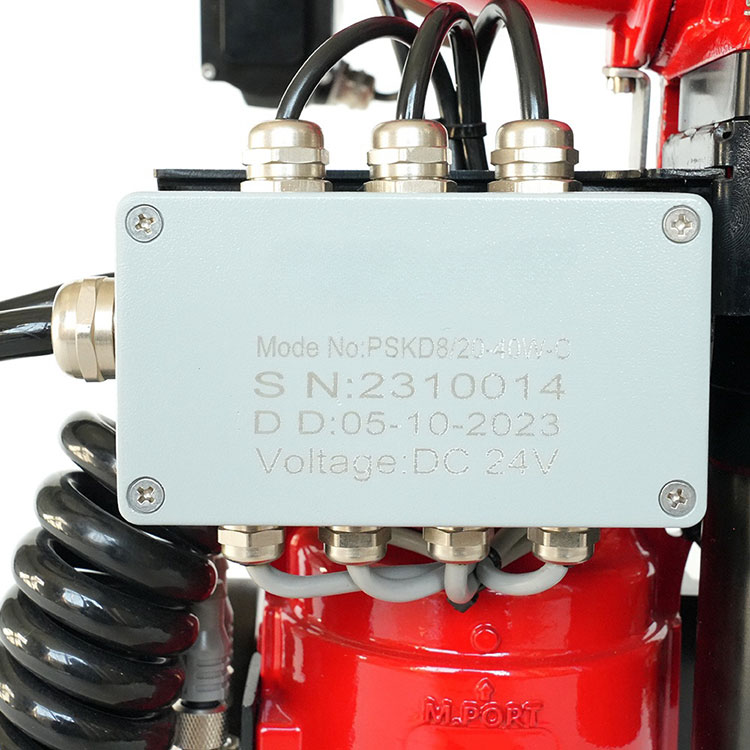

7. Reliable, Leakproof DT connector for easy cable connection.
8. 1-Year Warranty
● Oil & Gas
● Fuel Storage Area
● Fire & Rescue
● Mining
● Sea Conditions
● Chemical Industry
For More info about Ningbo Plent Electric Fire Water Monitor products, feel free to contact us any time.
