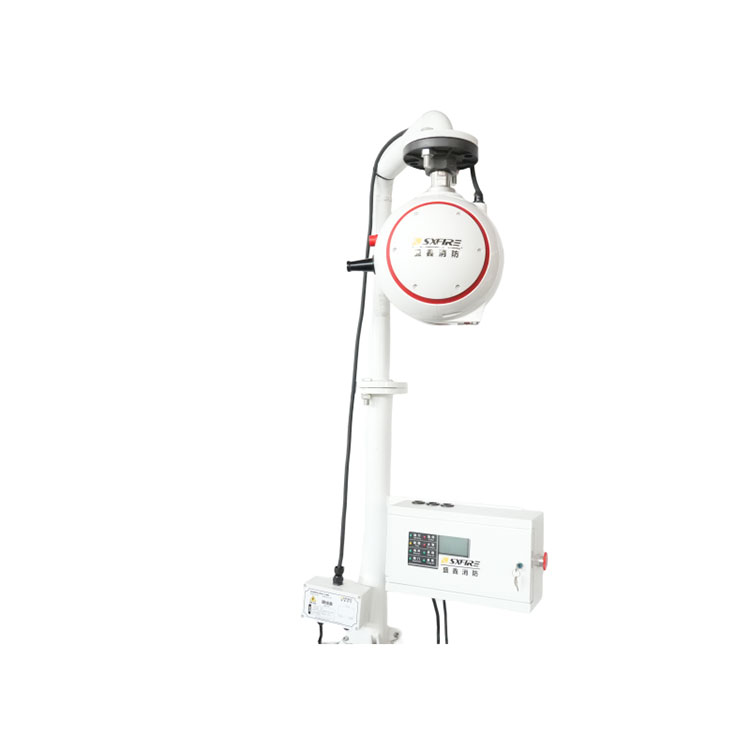

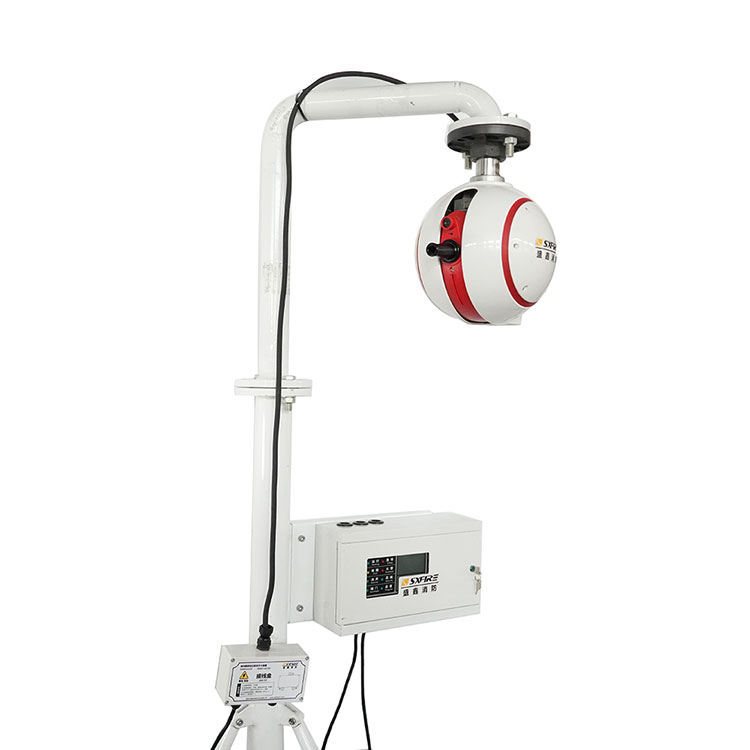

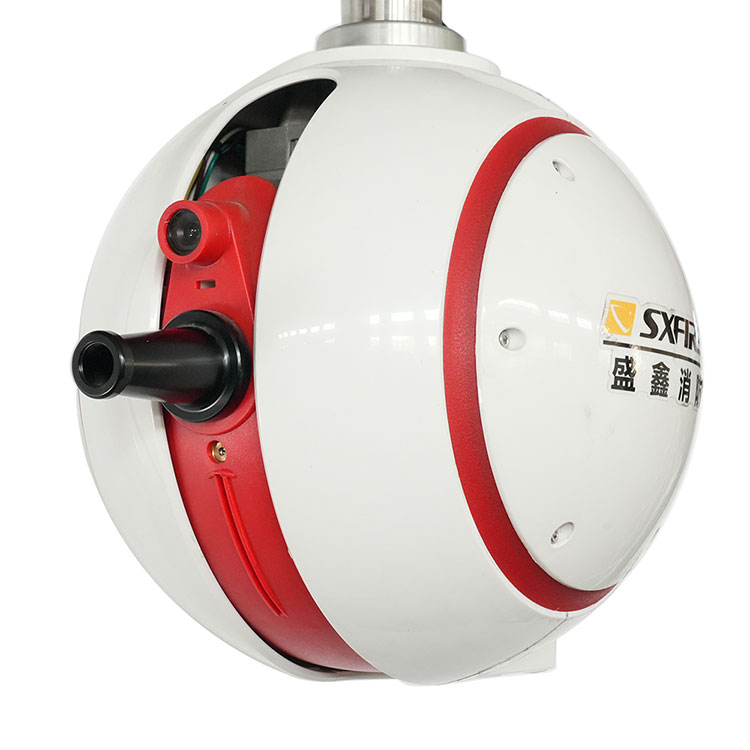

lent Intelligent Auto Tracking Fire Monitor Model# ZDMS 0.6/5S is applied unique Annulus Shape Alarm Indicating Lamp. This alarm lamp will be clearer and more striking. And our monitor is capable to capture and target fire source equal to and less than 30 seconds. This is a more efficient and faster firefighting equipment. Main structure of Plent Intelligent Auto-Tracking Fire monitor is made of Hard anodized aluminum alloy. This allows our fire equipment can be applied in long-term firefighting application. Furthermore, the price is more competitive.
Plent high quality Intelligent Auto Tracking Fire Monitor Model# ZDMS 0.6/5S is applied unique Annulus Shape Alarm Indicating Lamp. This alarm lamp will be clearer and more striking. And our monitor is capable to capture and target fire source equal to and less than 30 seconds. This is a more efficient and faster firefighting equipment. Main structure of Plent Intelligent Auto Tracking Fire monitor is made of Hard anodized aluminum alloy. This allows our fire equipment can be applied in long-term firefighting application. Furthermore, the price is more competitive.
Plent Intelligent Auto Tracking Fire Monitor Model’s inlet flange connection’s customized service is available. For more info., please kindly refer to below tech data sheet.
|
Product |
Plent Intelligent Auto Tracking Fire Monitor |
|
|
Model# |
ZDMS 0.6/5S |
ZDMS 0.8/10S |
|
Working Pressure |
6Bar / 87PSI |
8Bar / 116PSI |
|
Flow Rate |
300lpm (79GPM) |
600lpm (158GPM) |
|
Max Reach |
≥34m (Jet Radius) 30m (Max Protection Radius) |
≥39m (Jet Radius) 35m (Max Protection Radius) |
|
Targeting Time |
≤30sec. |
|
|
Travel Range |
>360°(Horizontally)/-90°~+30°(vertically) |
|
|
Working Voltage |
AC220V (or Customized) |
|
|
Jetting Pattern |
Jet Spray |
|
|
Mounting Height |
6~15m (suggested) |
|
|
Detecting Method |
combination tech of infrared ray and UV sensor |
|
|
Monitor Inlet |
2” Flange or Bigger Size (available for customized design) |
|
|
Communication mode |
RS485 |
|
|
Power Consumption |
Monitoring Mode: 1 W; Detecting Mode: 50 W |
|
|
Operation Mode |
Automatic/On-site Manual Operation/ Remote Manual Operation |
|
|
Trademark |
SXFIRE or Customized |
|
1.Hard Anodized Aluminum Alloy Product Construction
2.Compact Spherical Structure for Space Saving
3.Imported Key Parts (Motor and Sensor)
4.Flame Retardant High-strength Nylon Material
5.Unique Annulus Shape Alarm Indicating Lamp
6.Removable Sensor Protection Shell
7.Laser Positioning Indication, High-Definition Screen Monitoring
8.1-Year Warranty
● Oil & Gas
● Fuel Storage Area
● Fire & Rescue
● Mining
● Sea Conditions
● Chemical Industry
For More info about Plent Intelligent Auto Tracking Fire Monitor products, feel free to contact us any time.
