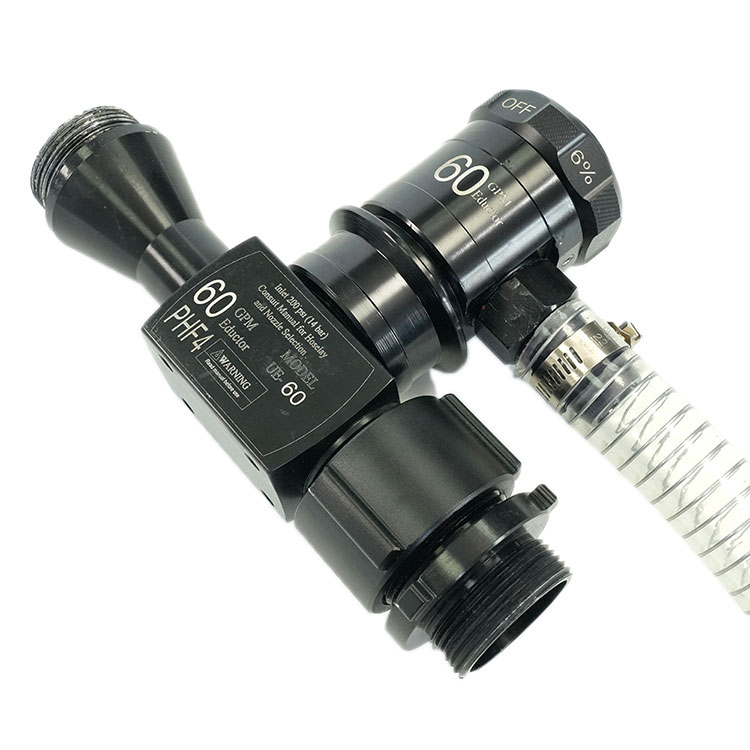

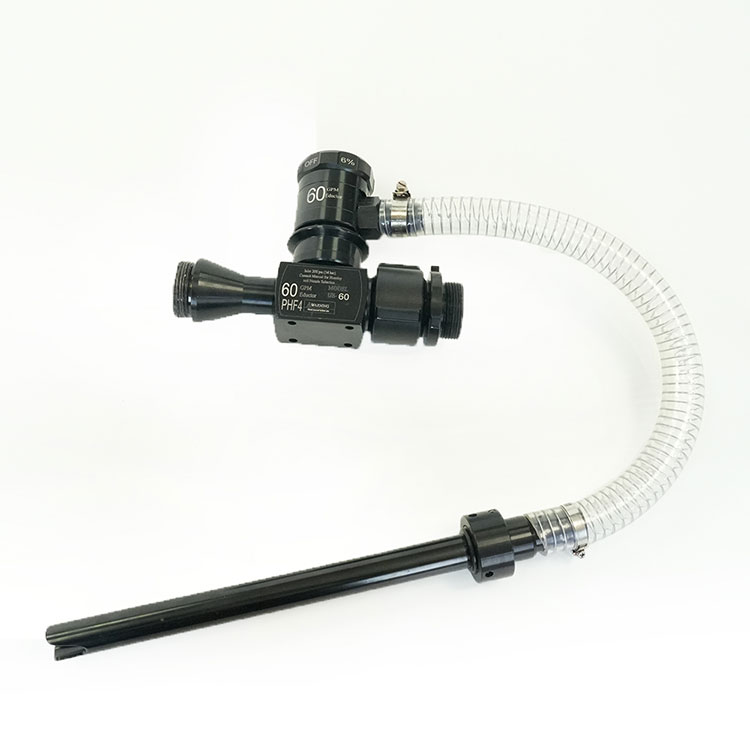

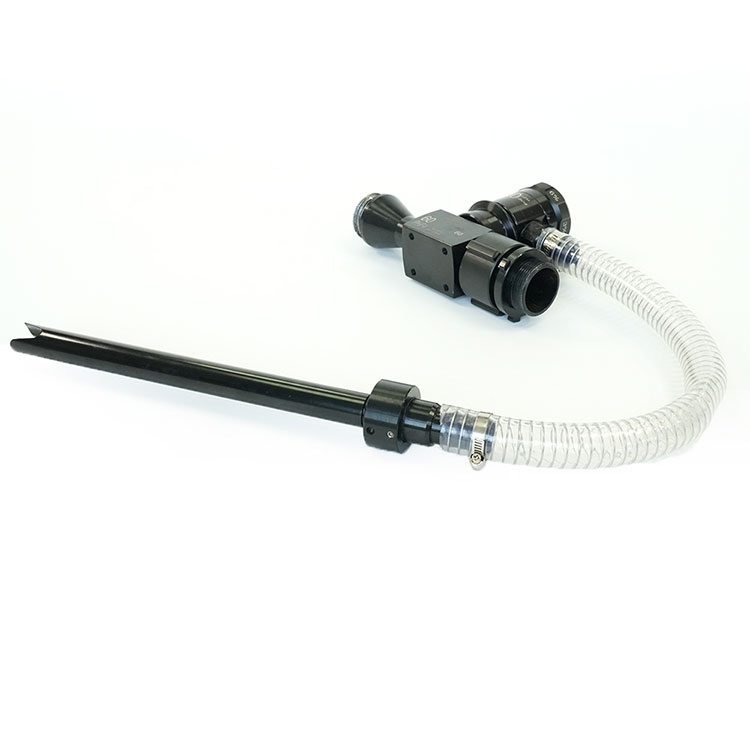

An 2.5Inch In Line Foam Eductor is one type of equipment that introduces foam concentrate into water stream. In this device, water enters an inlet and moves through a tapered section. Then it moves through a small orifice and into a bigger chamber to create a low-pressure area within the large chamber. A metering valve opens and the higher atmospheric pressure outside of the large chamber pushes your concentrate into the chamber. This concentrate then mixes with the water exiting from the lower pressure area, or Venturi.
An Eductor is one type of high quality Plent 2.5Inch In Line Foam Eductor that introduces foam concentrate into water stream. In this device, water enters an inlet and moves through a tapered section. Then it moves through a small orifice and into a bigger chamber to create a low-pressure area within the large chamber. A metering valve opens and the higher atmospheric pressure outside of the large chamber pushes your concentrate into the chamber. This concentrate then mixes with the water exiting from the lower pressure area, or Venturi.

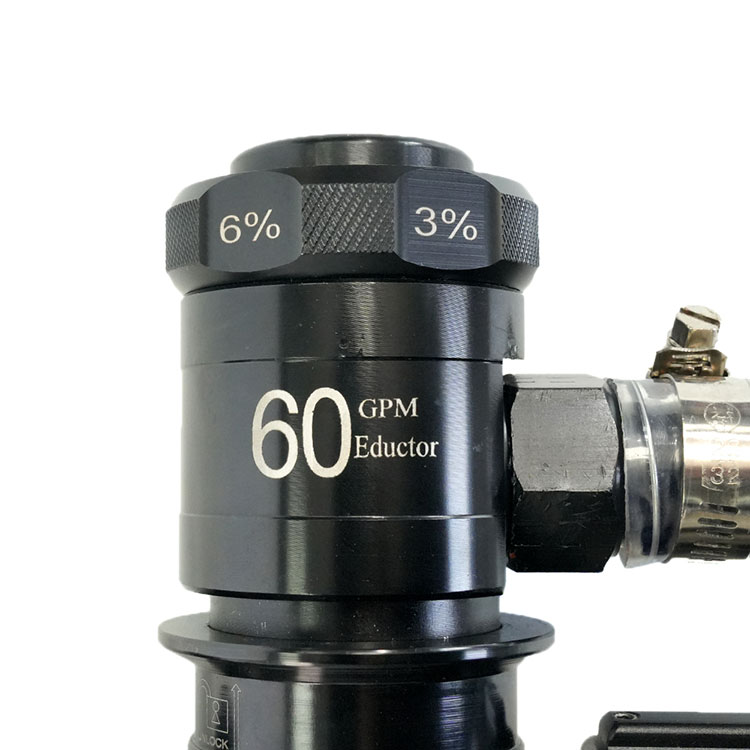

Plent 2.5Inch In Line Foam Eductor is capable to provide 5 types of foam concentrate’s ratio. Featured with competitive price. Please see more info in below chart.
|
Product |
2.5Inch In Line Foam Eductor |
|
Model# |
PHF-SX |
|
Flow Rate |
60GPM / 95GPM / 125GPM 230LPM /360LPM / 475LPM |
|
Working Pressure |
0.6~1.4Mpa (6~14 bar/85psi~205psi) |
|
Foam Ratio |
0.25% / 0.5% / 1% / 3% / 6% |
|
Inlet (choices) |
1”/ 2”/ 2.5” |
|
Main Components |
Body (Hard Anodized Aluminum Alloy) Pick up Hose (SS) Pick up Hose (Rubber) Coupling (Aluminum) |
● Oil & Gas
● Fuel Storage Area
● Fire & Rescue
● Mining
● Sea Conditions
● Chemical Industry
For More info about Ningbo Plent 2.5Inch In Line Foam Eductor products, feel free to contact us any time.
